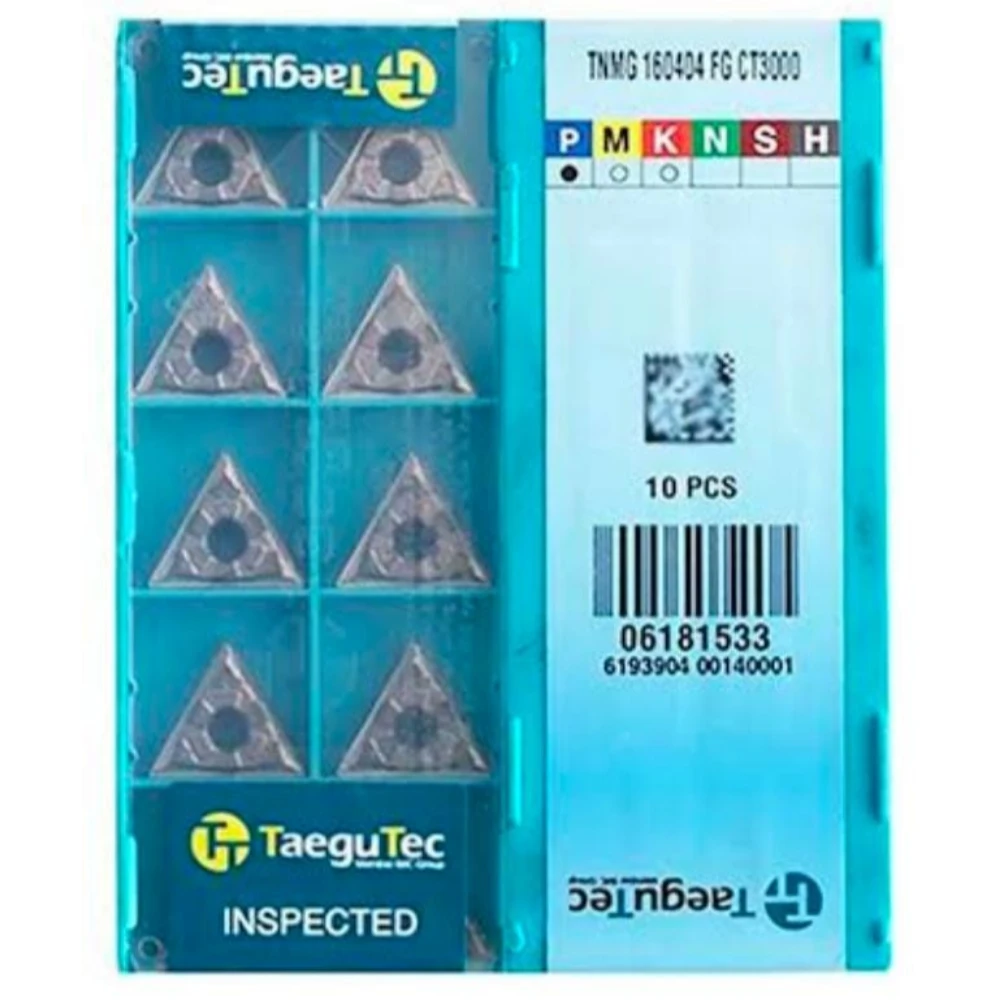

The TaeguTec TNMG160404-FG CT3000 is a high-performance, double-sided carbide insert designed for finishing and semi-finishing operations on steels, stainless steels, and cast irons. Featuring a 60° triangular shape with a 0.4 mm corner radius, this insert offers excellent surface finish and dimensional accuracy. The CT3000 grade is a cermet material known for its high wear resistance and low coefficient of friction, making it ideal for precision machining tasks.
Key Specifications:
-
Insert Type: Negative Triangular (TNMG)
-
Size: 160404 (16 mm inscribed circle, 4.76 mm thickness)
-
Corner Radius: 0.4 mm
-
Grade: CT3000 (Cermet)
-
Coating: Uncoated
-
Application: Finishing and semi-finishing of steels, stainless steels, and cast irons
-
Feed Rate Range: 0.08 to 0.35 mm/rev
-
Depth of Cut: Up to 2.5 mm
-
Cutting Edge Length: 16.5 mm
-
Insert Thickness: 4.76 mm
