🔧 Specifications
-

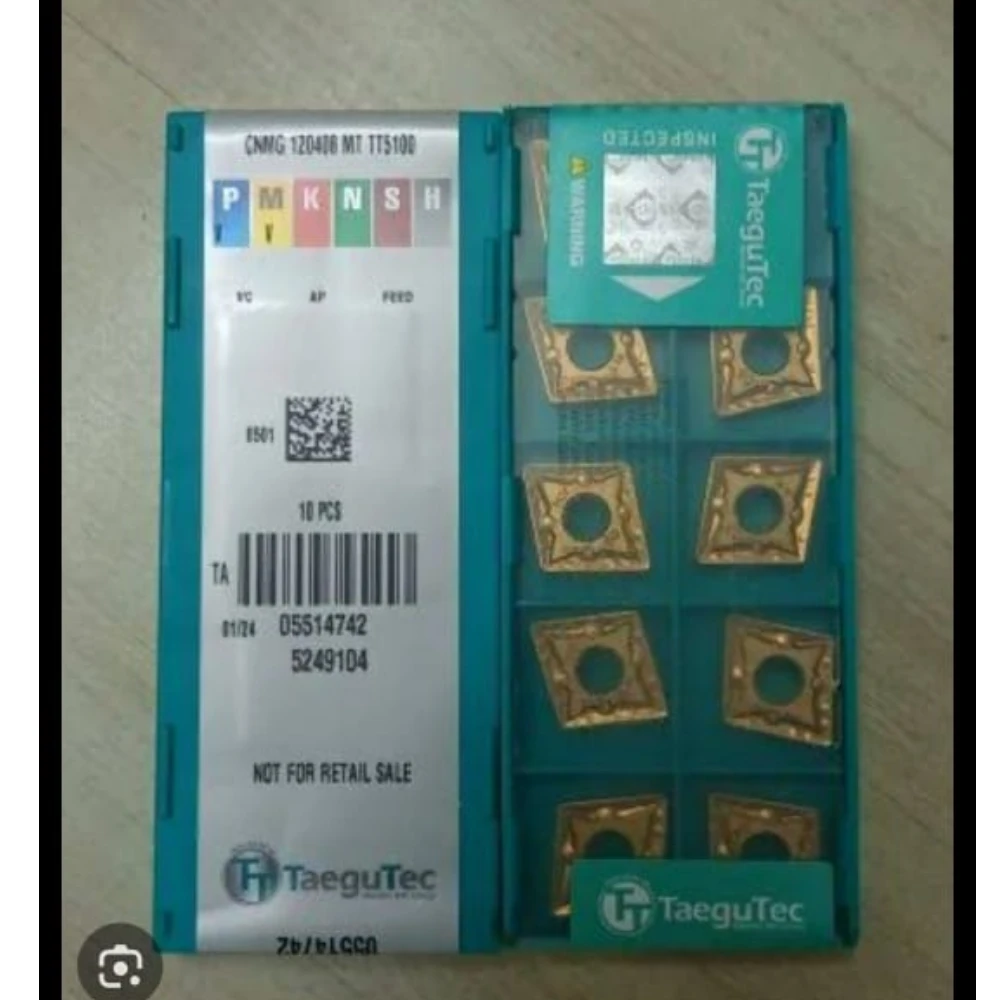

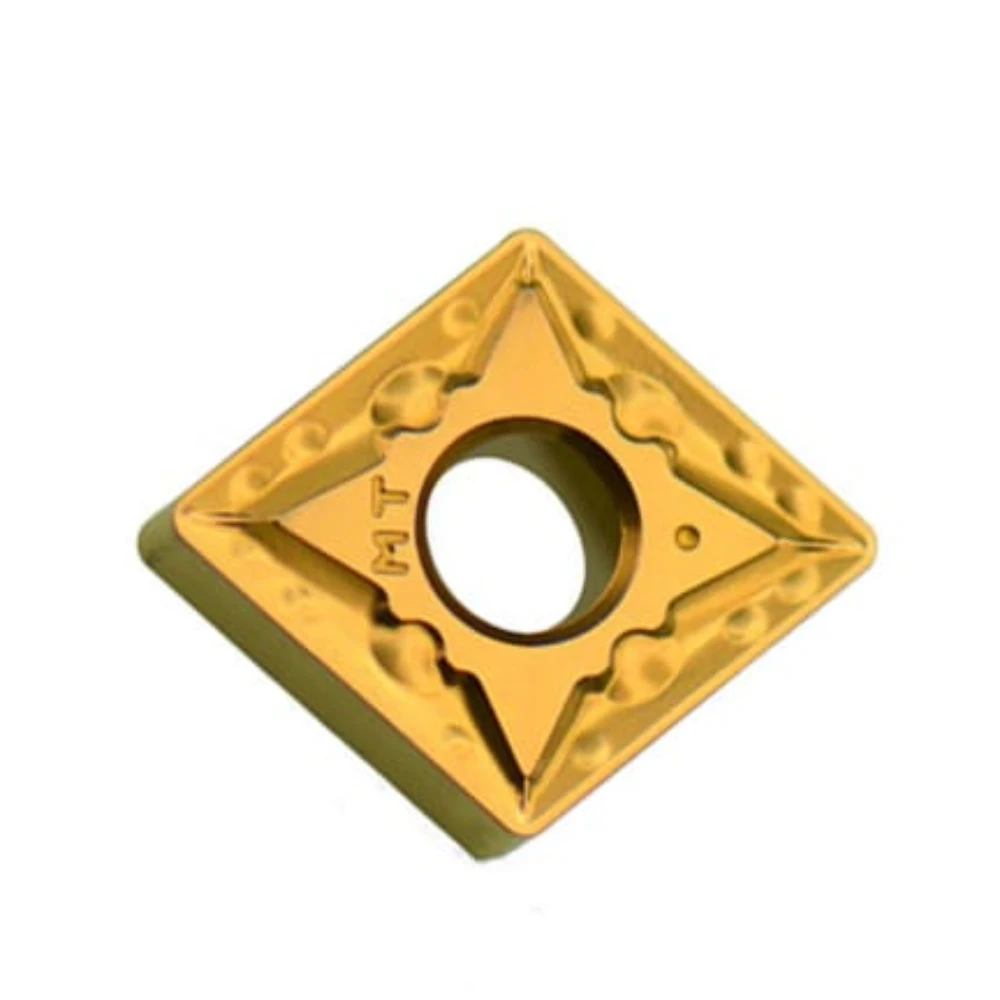

Insert Shape: Negative 80° rhombic (ISO CNMG)
-
Insert Size: 12.7 mm inscribed circle (IC) × 4.76 mm thickness
-
Chip Breaker: MT (Medium-Tough)
-
Grade: TT5100
-
Coating: CVD (TiCN + Al₂O₃ + TiN)
-
Corner Radius: 0.8 mm
-
Depth of Cut (ap): 1.2 – 5.0 mm
-
Feed Rate (f): 0.17 – 0.55 mm/rev
-
Maximum Depth of Cut (APMX): 5 mm
-
Cutting Edge Length (L): 12.9 mm
-
Inscribed Circle Diameter (IC): 12.7 mm
-
Insert Thickness (S): 4.76 mm
