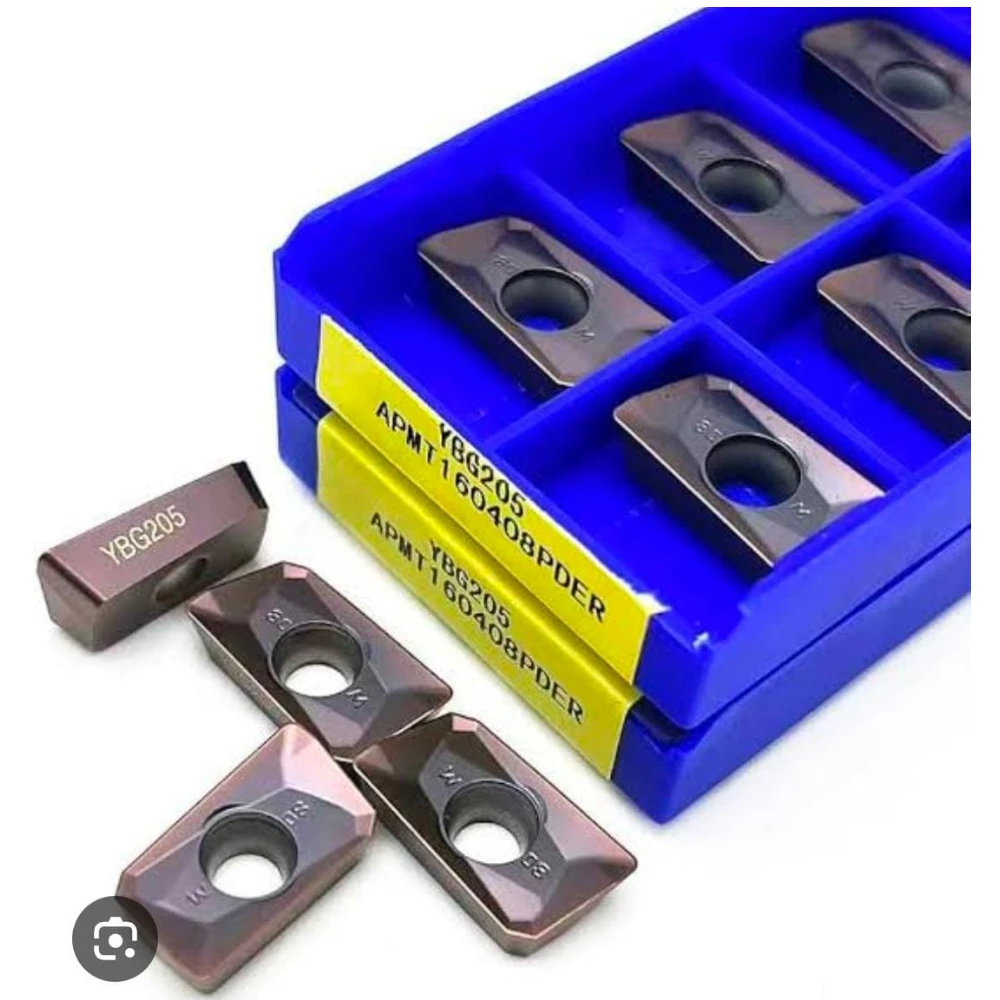

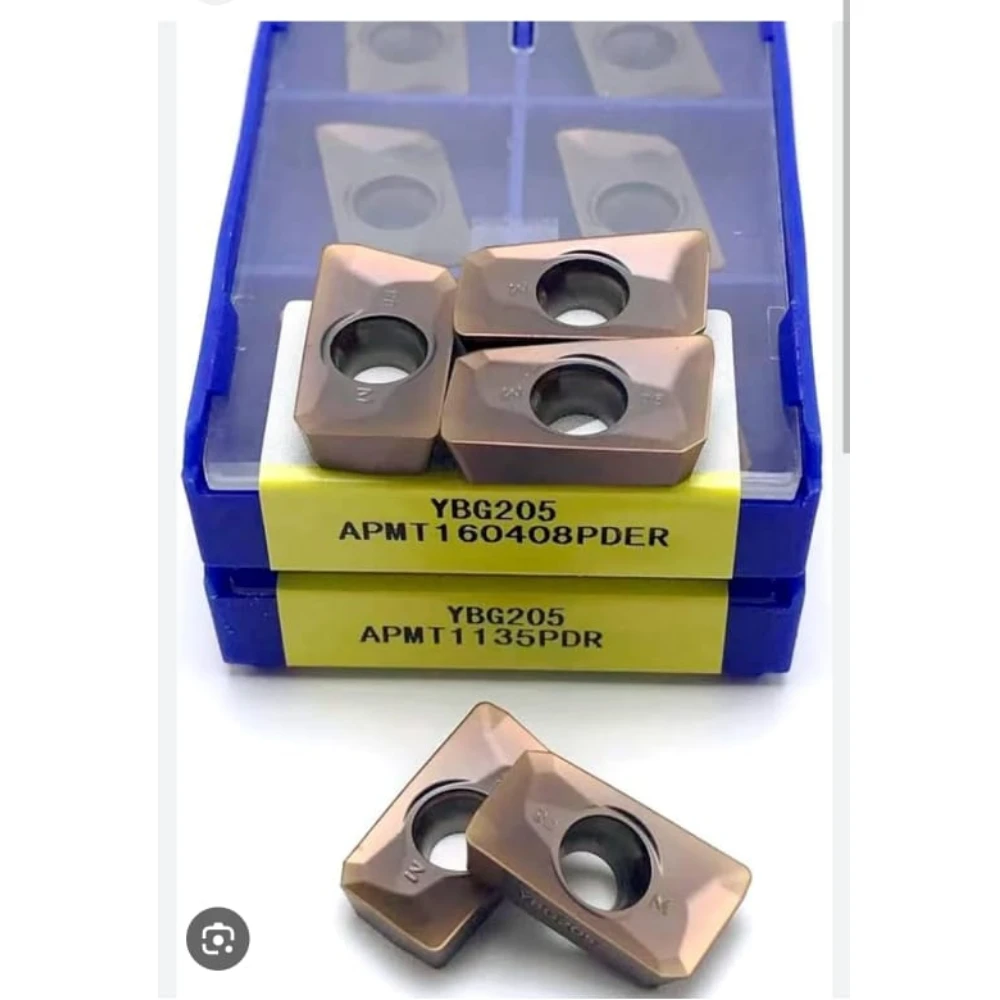

APMT1604PDR-WU20PM
20% off
₹120.00
MRP ₹150.00
In stock : 1000 available
MOQ : 10
🔧 Specifications
-
Insert Type: APMT1604PDR (ISO standard)
-
Insert Size: 16 mm x 4 mm x 4.76 mm
-
Insert Shape: Parallelogram
-
Grade: WU20PM
-
Coating: PVD (TiAlN)
-
Corner Radius: 0.8 mm
-
Application: Medium to finishing operations
-
Suitable Materials: Steel (P15–P30), Stainless Steel (M20–M30), Hardened Steel
-
Cutting Parameters:
-
Cutting Speed (Vc):
-
Steel: 80–180 m/min
-
Stainless Steel: 80–160 m/min
-
Hardened Steel: 50–120 m/min
-
-
Feed Rate (f): 0.15–0.35 mm/rev
-
Depth of Cut (ap): 1.0–3.0 mm
-
