🔧 Specifications
-

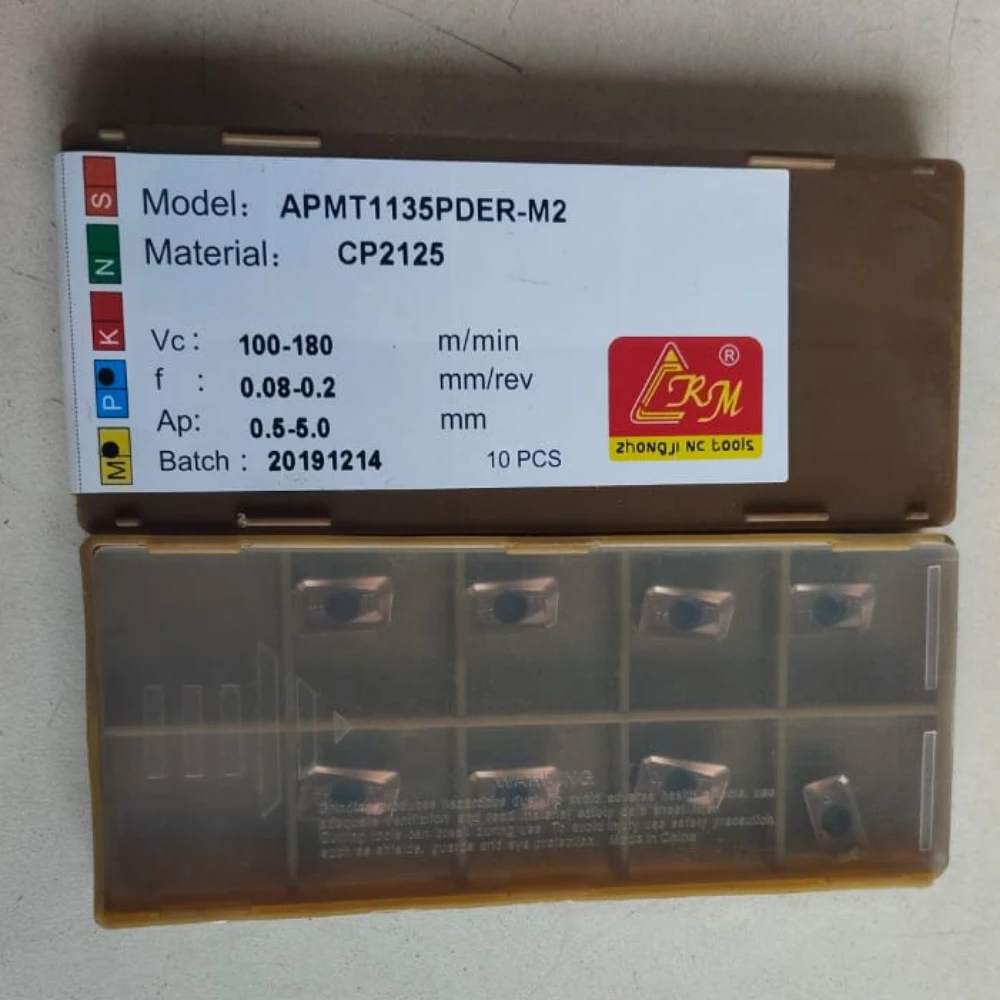

Insert Type: APMT1135PDER-M2 (ISO standard)
-
Insert Size: 11.18 mm x 6.35 mm x 3.5 mm
-
Chip Breaker: M2 (Medium Pitch)
-
Grade Options:
-
VP15TF: CVD-coated carbide suitable for steel machining.
-
F7030: CVD-coated carbide for milling steel and stainless steel.
-
MX3030: Cermet grade for milling steel and stainless steel.
-
-
Coating: CVD (TiCN + Al₂O₃ + TiN)
-
Application: Medium to finishing operations
-
Suitable Materials: Steel (P15–P30), Stainless Steel (M20–M30), Cast Iron (K20–K40)
-
Cutting Parameters:
-
Cutting Speed (Vc):
-
Steel: 80–180 m/min
-
Stainless Steel: 80–160 m/min
-
Cast Iron: 80–130 m/min
-
-
Feed Rate (f): 0.15–0.35 mm/rev
-
Depth of Cut (ap): 1.0–3.0 mm
-
